Stoplite II Oxygen Alert

Stoplite II Oxygen Alert

The ever-more present dangers of low-oxygen storage have sparked the latest offering from Gas Control Systems, the STOPLITE II™.

The STOPLITE II™ system can be added to most SCS and GCS CA controllers. The system was developed to simply and obviously alert persons before entering a CA environment by using the universally adopted and utilized concept behind traffic safety, the traffic signal. Green means go, yellow means yield and red means stop: what could be more simple?

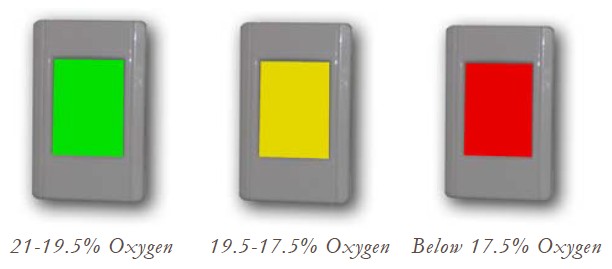

The 2.8” touchscreen interface is installed outside the door of each CA room and requires nothing more than a low-voltage Ethernet cable for power and data. The screen displays three colored notifications: green above 19.5% O2, yellow between 19% and 17.5% O2, and constant red below 17.5% O2.

When you touch the STOPLITE II™, that’s when things come alive. Depending on the options installed in the central controller, STOPLITE II™ displays oxygen, carbon dioxide, room pressure, up to 6 temperature probes, and control of room lighting.

The STOPLITE™ can also be modified to monitor other gases, such as ammonia or ethylene, or to communicate between a GCS 6000 CA control, SCS-SII, or EIII+ carbon scrubber.

Features

  • 2.8” touchscreen at each controlled atmosphere room
  •  Multi-stage light displays warning level
  •  High-resolution TFT-LCD display
  •  PoE Ethernet connection for fast installation

Screenshots
