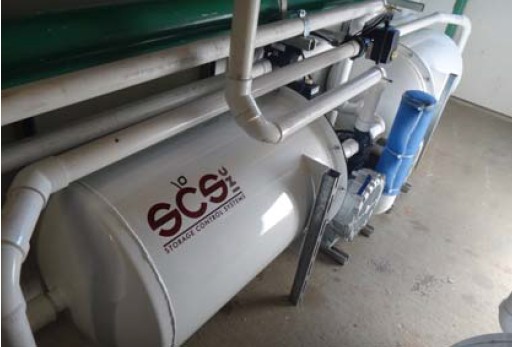

Solo Series CO2 Scrubbers

SCS is proud to announce their latest Solo Series CO2 scrubbers.

Sized for single rooms, this CO2 scrubber has enormous capacity for its size. Use it at harvest time or as an emergency solution for a room with CO2 out of control. Park it in a hallway, outside the room, or simply inside the room, the twin bed design offers effective CO2 scrubbing for even the lowest of oxygen regimes. Get all the advantages of a whole-store CO2 scrubber with virtually no room PVC piping! Our patent pending N2 bed flush is available as an option if needed.

The PLC, screen, and VFD package on the scrubber allow for 115V wiring with a standard wall plug, minimal kW usage, operator interface, alarms, and ethernet connectivity to larger host computer systems for RUN commands.

Four models available
Place inside room or hallway
Models 100 & 150: 115v single phase power with standard plug
Models 160 & 180: 220-460v single/three-phase power
No extensive room piping
ULO compatible
Ethernet connectivity
Twin-bed scrubbing
Patent-pending nitrogen purge optional

SPECS & DIMENSIONS

Model	Capacity	Width	Depth	Height	Weight
Solo 100	49kg CO2 @ 3.0%	54″	26″	71″	800 pounds
Solo 150	94kg CO2 @ 3.0%	54″	29″	71″	1150 pounds
Solo 160	138kg CO2 @ 3.0%	53″	46″	77″	1525 pounds
Solo 180	171kg CO2 @ 3.0%	82″	35″	78″	1800 pounds

Advantages of Using SCS Scrubbers

Built in the USA at SCS facilities

Top-grade carbon specially formulated for CO2 removal

8″ touch screen with PLC control

Room pressure monitoring and logging
Room pressure testing feature
MODBUS with SCS controls
automatically logs run-time to prove capacity
Alarm screen allows shut-down for over pressure and blower failure

PLC-input driven on-board CO2 analyzer

Controls switching of the cycles
As the CO2 decreases, the scrub cycle time changes

Simple, clean, energy-efficient design

Typically half the kilowatt draw of competitors units
Analyzer-dependent, variable scrub cycle times save energy & increase lifespan of carbon beds
Highly-organized design for efficiency as well as aesthetic appeal
White powder-coated panels conceal moving parts, keeping everything clean
Engineered for easy service

No auxiliary air compressor required

No lung to place or maintain

Direct drive, USA-made blowers eliminate belt headaches

Variable frequency drives (VFDS)

Ensure proper airflow to each room
Maximize efficiency on long runs

Automatic room pressure testing

Escalated CO2 exposure increases firmness
